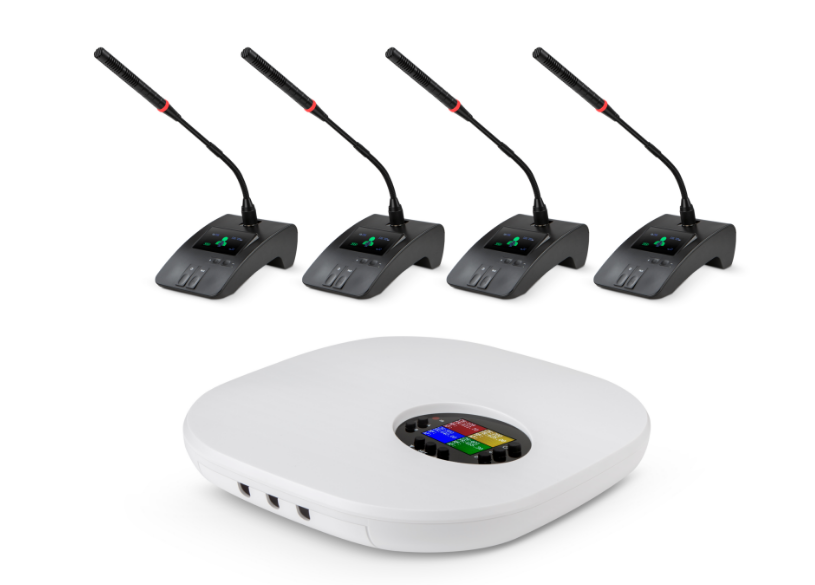

ED-U440AP-A/B/C/D

Wireless one to four (AP type)

ED-U440AP-A/B/C/D

Product Overview

Mainly used with ED-4300, AP version requires external power supply and microphone signal cable

Product Features

Main features include

  • TFT 2-inch color high-definition display, high brightness, high contrast, wide viewing angle, hierarchical menu design, easy to operate
  • The receiver supports personalized logo customization to enhance the professionalism of the system
  • Adopts PLL phase-locked loop frequency synthesis technology and supports automatic infrared frequency binding
  • 610–670MHz operating frequency band, 200 channels to choose from
  • Dual squelch control (noise lock, audio code navigation) to ensure audio stability
  • Support audio dynamic expansion and automatic level control
  • The conference microphone is equipped with a 2.6-inch high-definition color display, silent button design, waterproof and durable
  • Ultra-low power consumption design, continuous speaking time ≥8 hours, standby time ≥10 hours
  • Suitable for conference rooms, multi-function halls, education and training and other scenarios

Product Specifications

Technical parameter details:

Working frequency 610–670 MHz
Number of channels Channel 200
frequency stability ±0.002%
Use distance ≥60 meters (open environment ≥100 meters)
audio frequency response 50Hz-15kHz
Signal-to-Noise Ratio >85 dB
total harmonic distortion ≤0.8%
total audio gain ≤20dB
Receiver interface Power interface ×1, 6.35 balanced output ×1, Phoenix balanced interface ×1
Power Input DC 12V ≥1A
Receiver size 220 × 220 × 30mm
