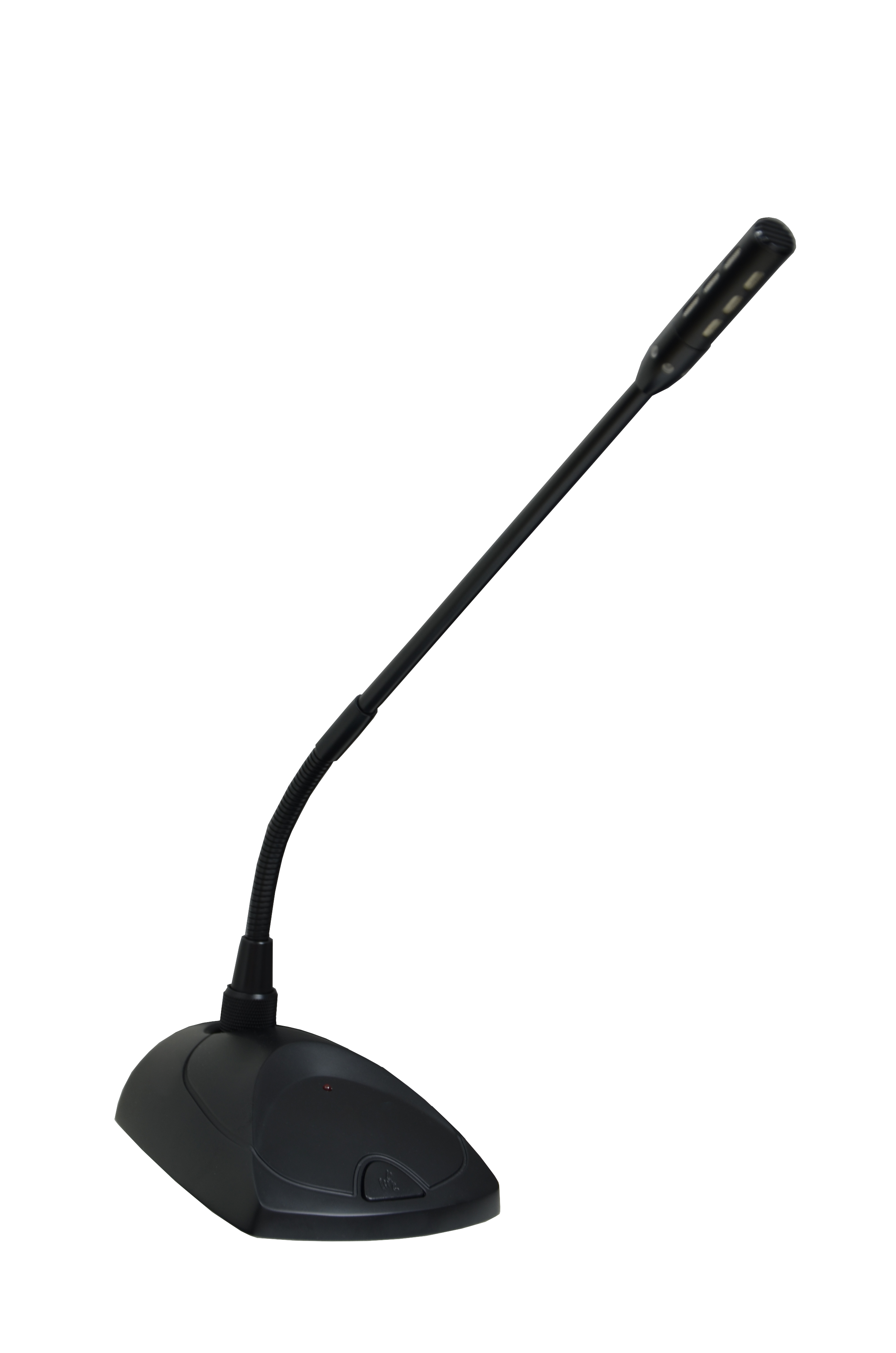

ED-M40

DSP podium dual microphone adjustable directional array microphone

ED-M40

Product Overview

Dual microphone core design, adjustable directivity such as omnidirectional, wide-cardioid, heart-shaped, supercardioid, and figure-8, to meet the needs of various conference scenarios

Product Features

Main features include

  • Dual microphone core design provides stable and reliable sound pickup effect
  • Adjustable directivity such as omnidirectional, wide-cardioid, heart-shaped, supercardioid, and figure-8 to meet various reports, meetings, speeches, VIP receptions, etc.
  • Dot-shaped distributed LED red and blue two-color speaking indicator light
  • Anti-cell phone interference microphone core, nut knob type connector connection, free plug-in and pull-out, stable connection, durable and reliable
  • The miniature shotgun microphone head and microphone pole connector are made of copper to ensure clear sound pickup and are sturdy and durable.
  • Zinc alloy injection molded base with streamlined design, sleek and smooth appearance, and illuminated LCD indicator light
  • The speaking function keys adopt ergonomic design, making it easy for users to switch between them.
  • The base is compact and moderate in size, meeting simple desktop use for meetings, trainings, reports, etc.
  • The unit as a whole has a net weight of 0.86Kg excluding connecting cables. It is stable and has good shock-proof function, eliminating desktop noise interference.
  • The base is equipped with a gel anti-slip and anti-vibration pad to enhance the overall sound pickup effect of the microphone.

Product Specifications

Technical parameter details:

Power DC48V
Microphone type Capacitive
crosstalk attenuation >85dB
distortion <0.1%
Frequency Response 100Hz~20kHz
Sensitivity -22dBv/pa
equivalent noise ≈20dB SPL
Max SPL 105dB (3% threshold)
Color black
Overall dimensions (length × width × height) 144×94×43 mm
Rod length 380mm
net weight 0.86Kg

Product Resources

Relevant resource documents:

No product resources available
