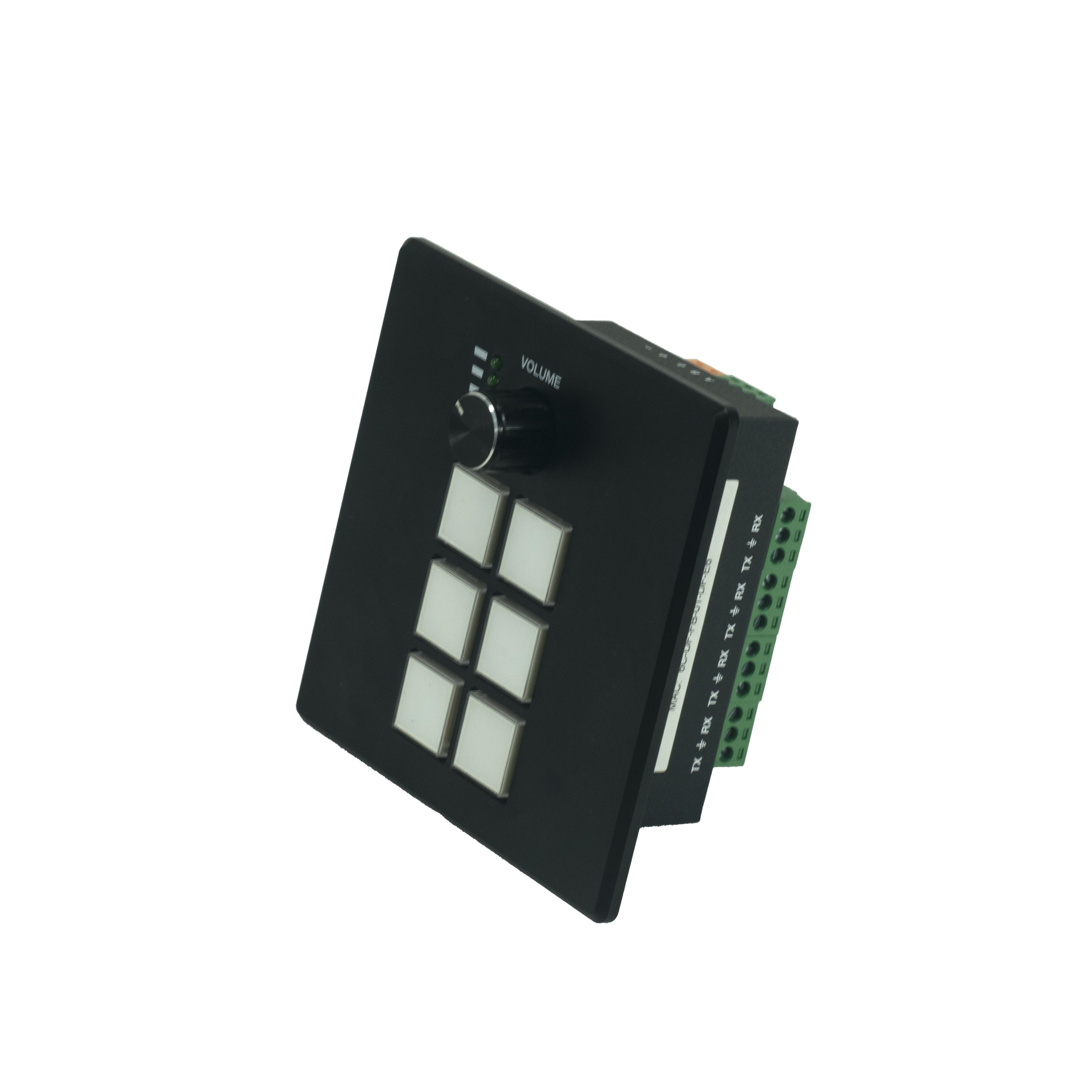

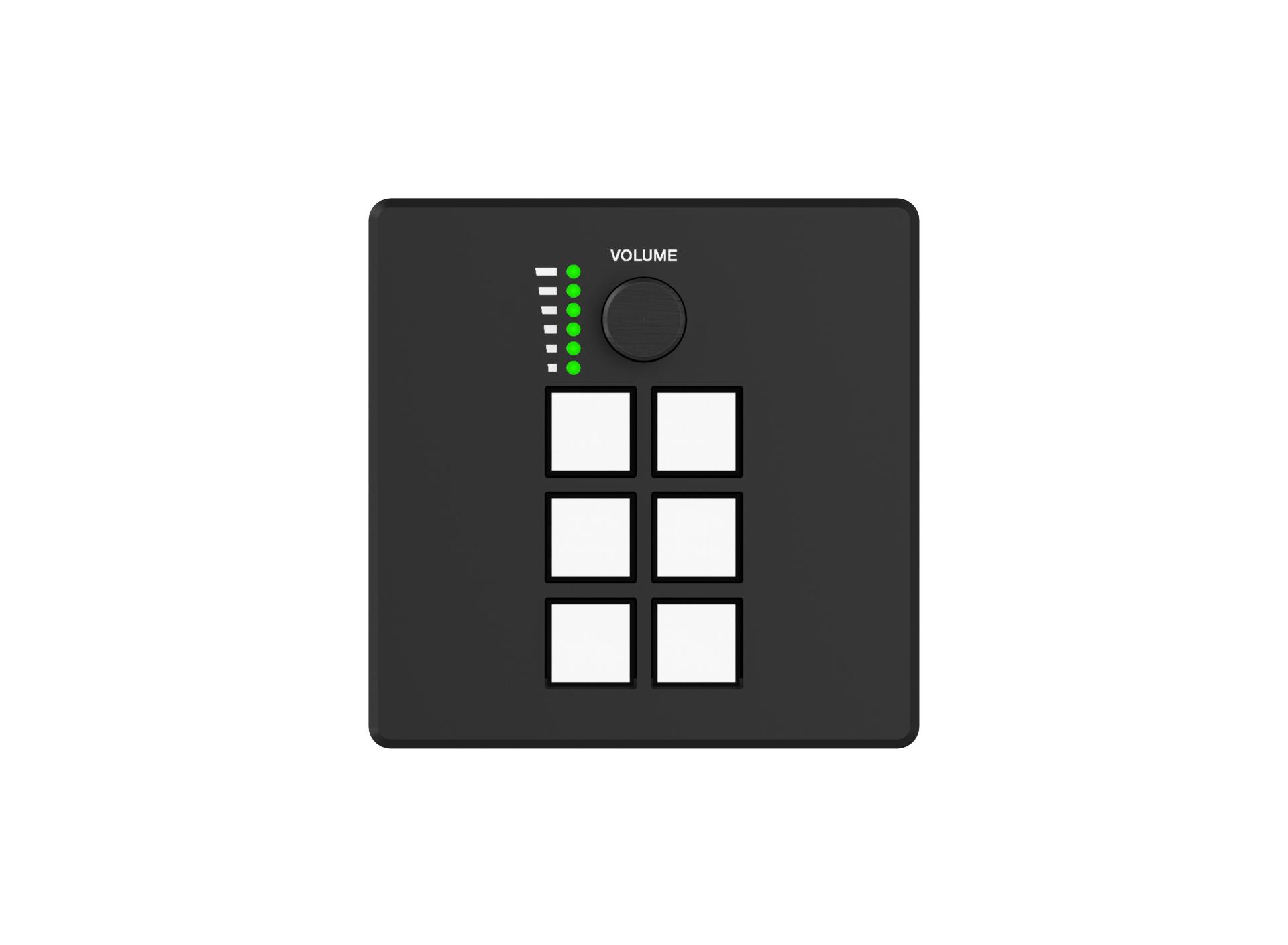

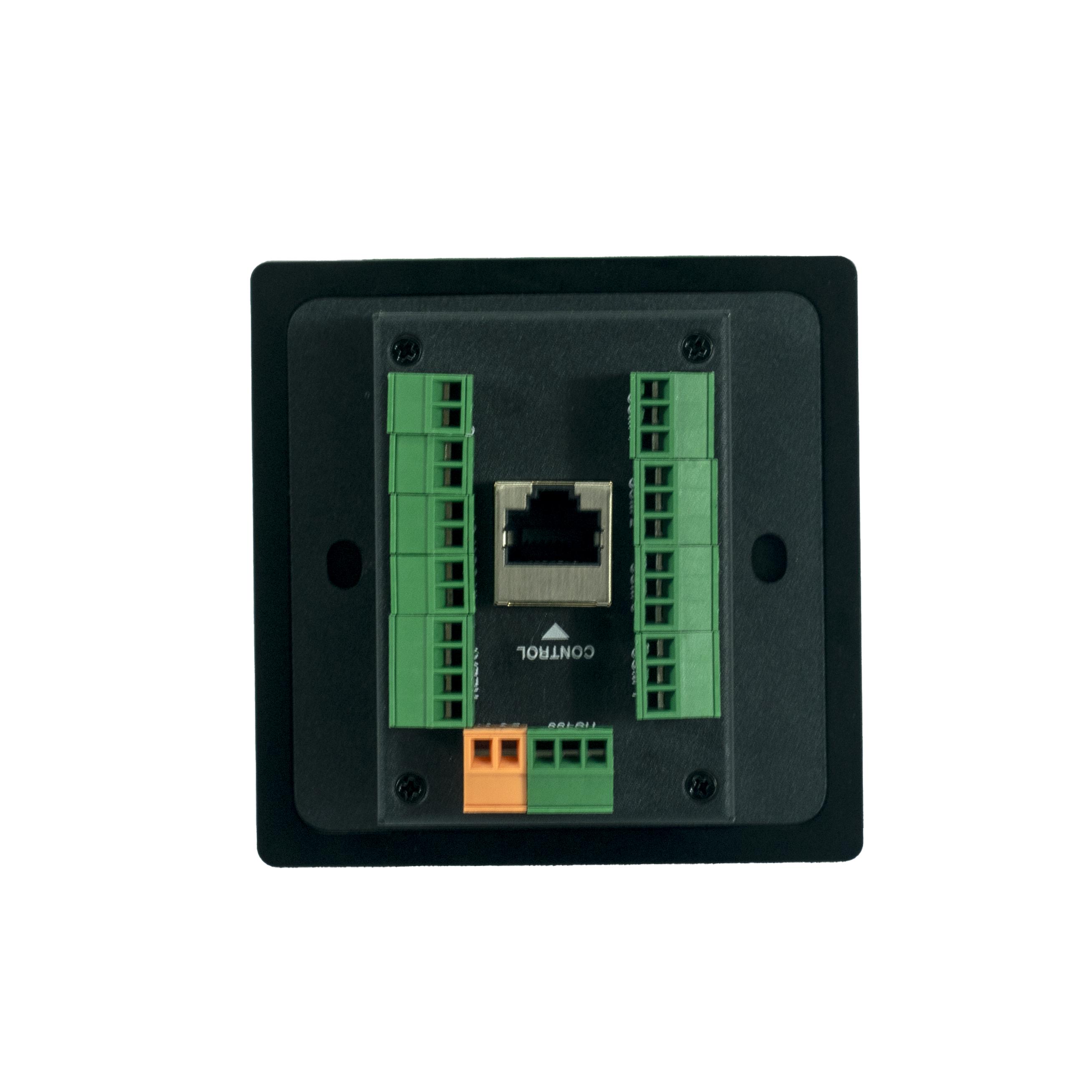

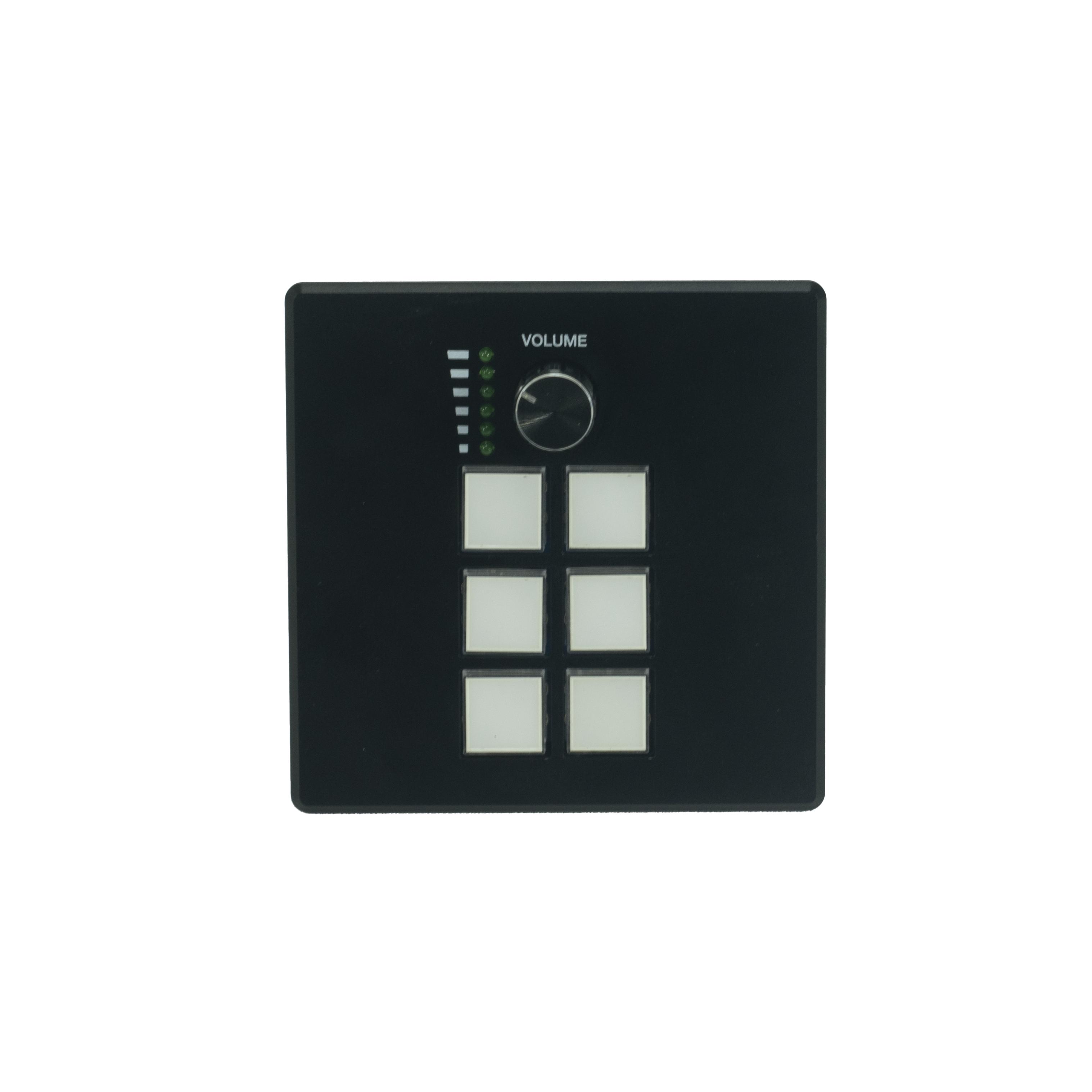

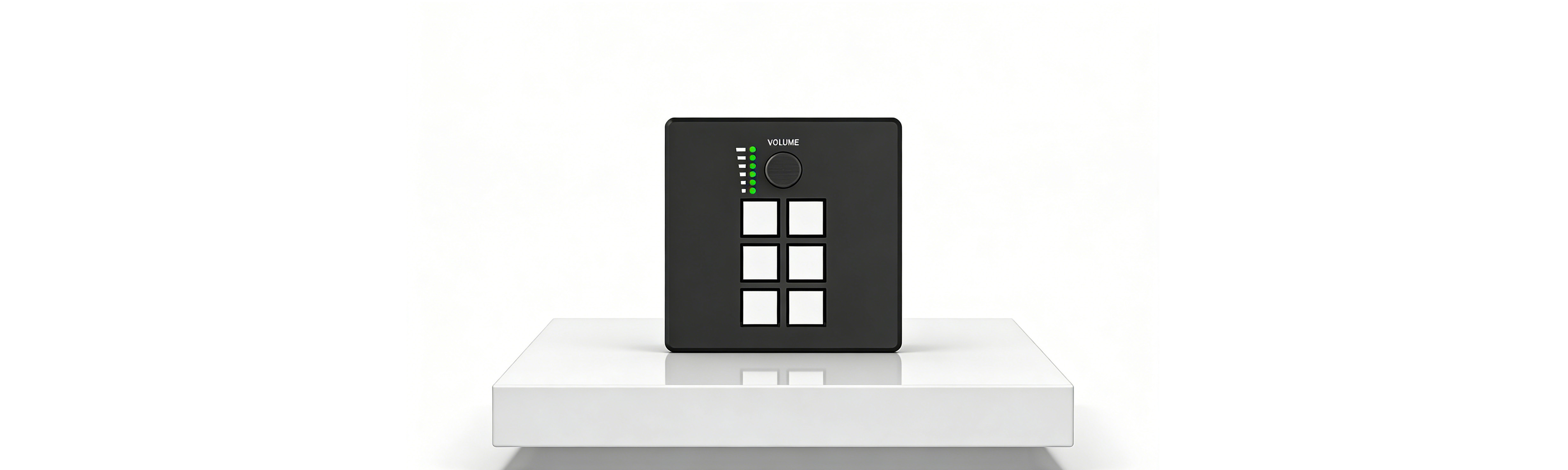

ED-6AXPOE
6-Key Programmable Knob Panel
Product Overview
For Use with IoT Scenarios, Built-in Central Control Core, Supporting POE Power Supply and Programmable Control
Product Features
Main features include
- 6×Programmable Buttons with LED Indicator Lights
- Magnetic Aluminum Panel Design with Two Colors (Black and White) for Easy Replacement
- 1×Programmable Clickable Knob with Progress Indicator Light
- Built-in Central Control Core for Use with IoT Scenarios
- Simple Programming Method Without Coding
- Supports DC 24V or POE Power Supply
Product Specifications
Technical parameter details:
| Number of Buttons | 6×Programmable Buttons with LED Indicator Lights |
| Knob | 1×Programmable Clickable Knob with Progress Indicator Light |
| Network Port | 1×100M Ethernet Port Compatible with TCP/UDP Protocols |
| Serial Port | 4×RS232 Ports (Baud Rate Configurable) |
| Bus Interface | 1×RS485 Port (Baud Rate Configurable) |
| Infrared Output | 2×Infrared Output Ports (Carrier Frequency 20kHz-60kHz) |
| Input/Output Ports | 2×I/O Ports |
| Relay | 2×Relay Ports |
| Power Supply Method | DC 24V or POE |
| Panel Material | Magnetic Aluminum Panel |
| Panel Color | Black / White |
