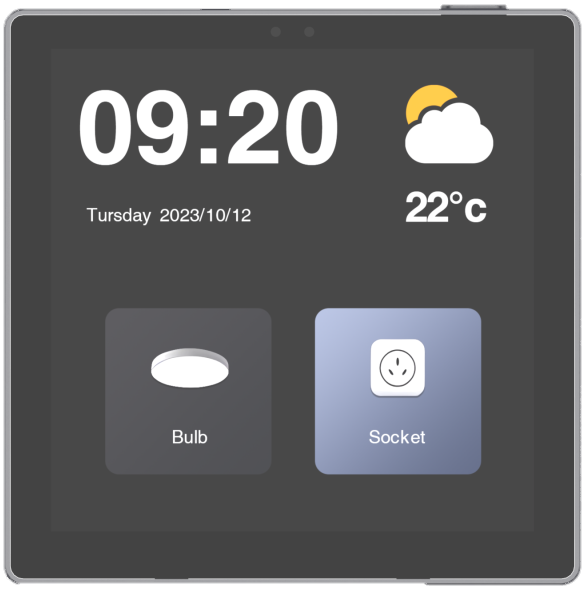

ED-4.0L
4-inch Programmable Wall-Mounted Touch Screen
Product Overview
86-Type System Dedicated Network Touch Control Screen, Supporting Fully Customizable User Control Interface, Suitable for Programmable Scenarios (Such as Class Start/End)
Product Features
Main features include
- 86-Type System Dedicated Network Touch Control Screen
- 4-inch Touch Panel with Resolution 480×480
- Brightness Sensor Supporting Automatic Brightness Adjustment
- Built-in Rich Interfaces: RS232×2, RS485×1, IR×1, IO×1, +5V S GND Temperature and Humidity Sensor Interface
- Built-in Power Interface to Meet the Needs of Power Supply and Data Transmission Simultaneously
- Fully Customizable User Control Interface (UCI) with Unique Drag-and-Drop Creative and Practical Tools, Enabling the Construction of Intuitive Scalable Interfaces Without Programming
- Network Touch Screen Can Display Various Contents, from Simple Controls on Single-Page GUI to Complex GUI, Supporting Feedback Control That Can Change According to System Status
- Supports Easy Import of Corporate Logos and Other Graphic Elements to Customize UCI According to Customers' Specific Requirements
Product Specifications
Technical parameter details:
| Screen Size | 4 Inches |
| Resolution | 480×480 |
| Touch Type | Touch Panel |
| Sensor | Brightness Sensor |
| Control Interface | RS232×2、RS485×1、IR×1、IO×1 |
| Other Interfaces | +5V S GND Temperature and Humidity Sensor Interface, Power Interface |
| Installation Type | 86-Type System Dedicated |
| Interface Customization | Supports Fully Customizable User Control Interface (UCI) |
| Programming Requirement | Control Interface Can Be Built Without Programming |
Product Resources
Relevant resource documents:
No product resources available
