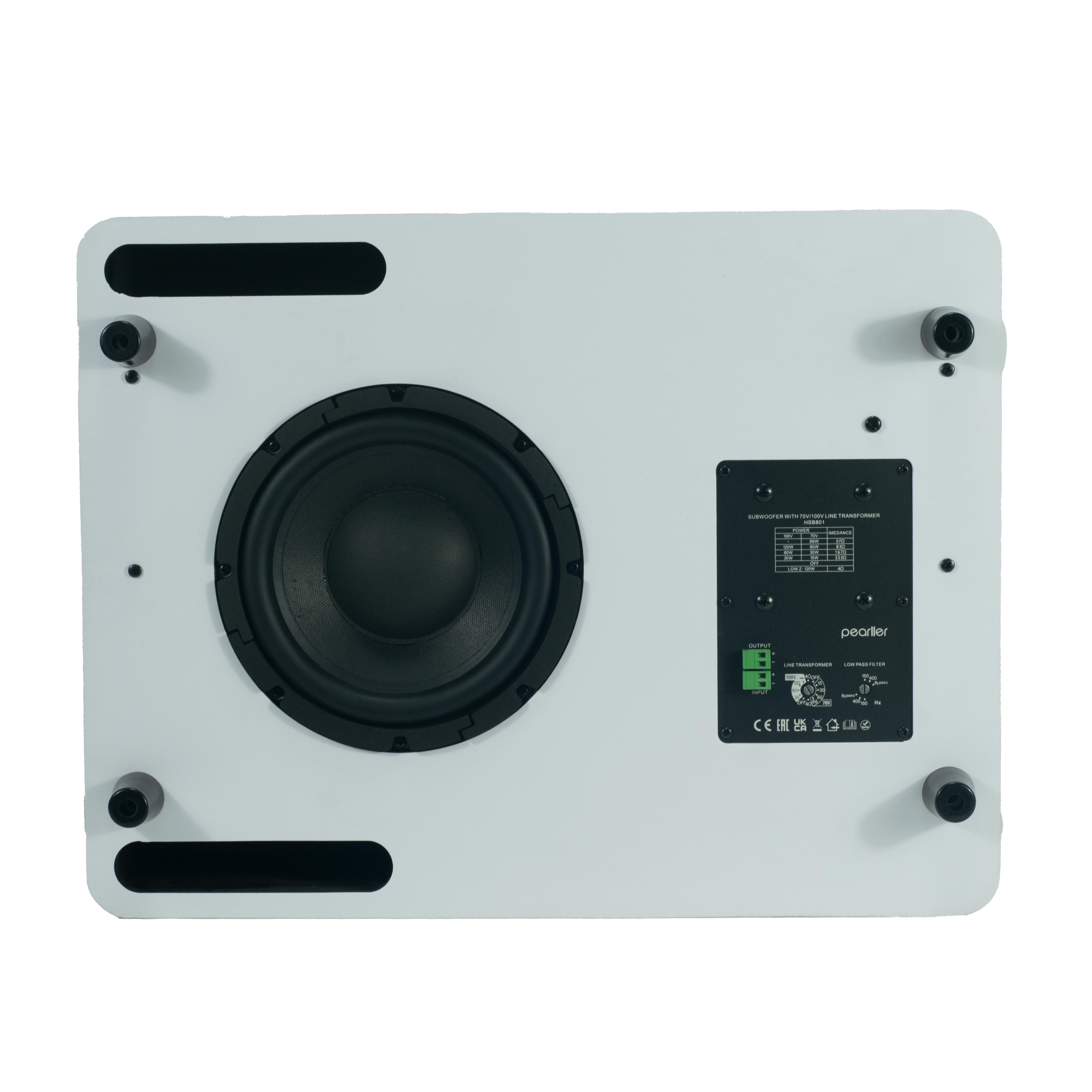

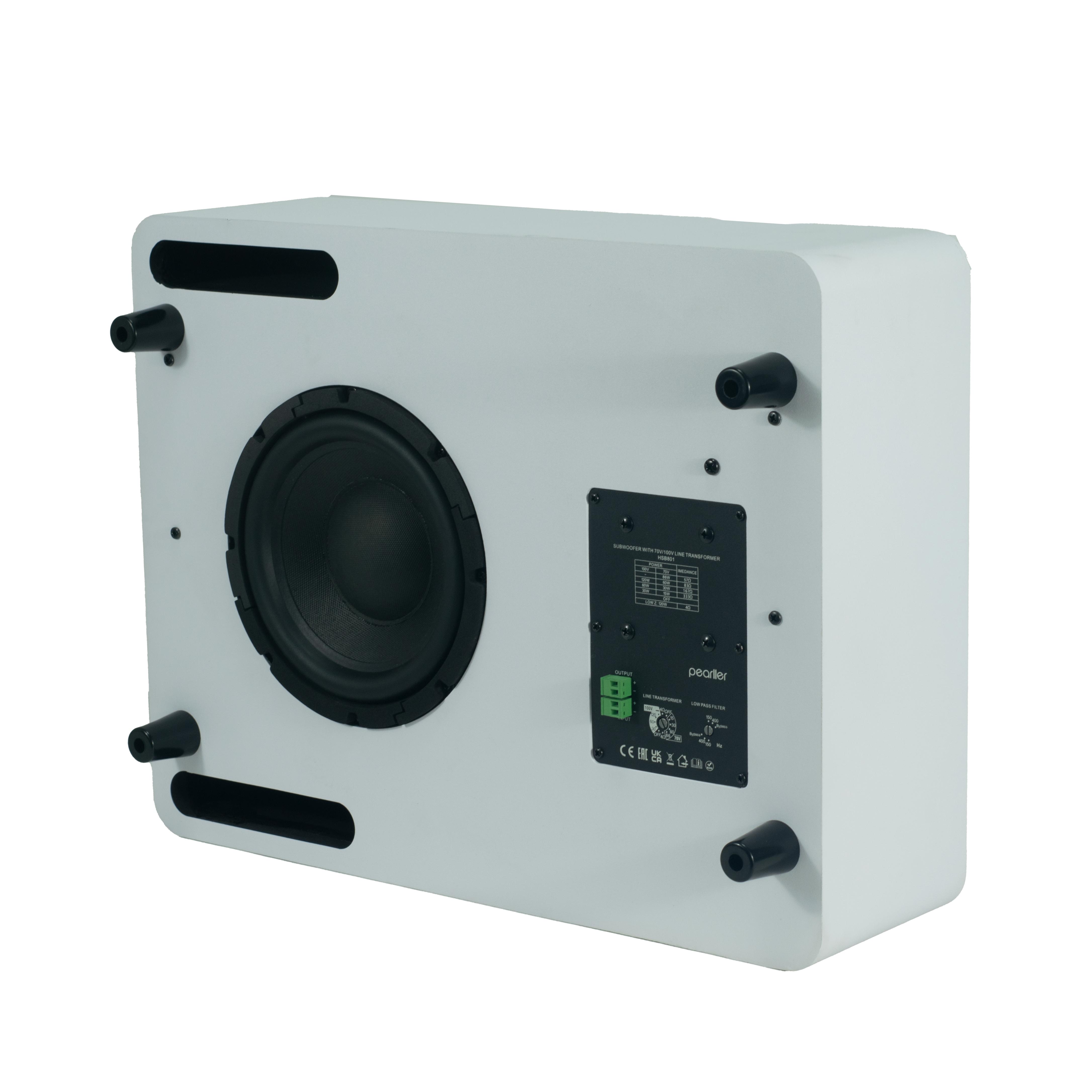

AM18SUB
1×8-inch Bass Speaker
Product Overview
Mainly Applied to Background Music Systems to Enhance Bass Performance
Product Features
Main features include
- Suitable for Bass Enhancement Applications in Background Music Systems
- Recommended to Be Used with ED-4150, ED-4300 and ED-2300 Series Power Amplifiers
- 8-inch Bass Loudspeaker Unit with Deeper Bass Extension and Sufficient Bass Quantity
- Supports 100V / 70V Constant Voltage Input and Low Impedance Mode with Strong System Compatibility
- Suitable for Conference Rooms, Commercial Spaces, Public Areas and Other Venues
- Offers Two Exterior Color Options: White and Black
Product Specifications
Technical parameter details:
| Bass Loudspeaker | 8 Inches |
| Rated Power (RMS) | 120 W |
| Constant Voltage Power / Impedance | 120W @100V (83Ω), 85W @70V (57Ω), 60W @100V/70V (166Ω / 83Ω), 30W @100V/70V (333Ω / 166Ω), 15W @100V/70V (666Ω / 333Ω), 7.5W @70V (666Ω) |
| Low Impedance Mode | 6 Ω |
| Frequency Response | 90 Hz – 20 kHz |
| Sensitivity (1W / 1m) | 85 dB |
| Maximum Sound Pressure Level | 103 dB |
| Color | White / Black |
| Dimensions (W×H×D) | 545 × 150 × 337 mm |
