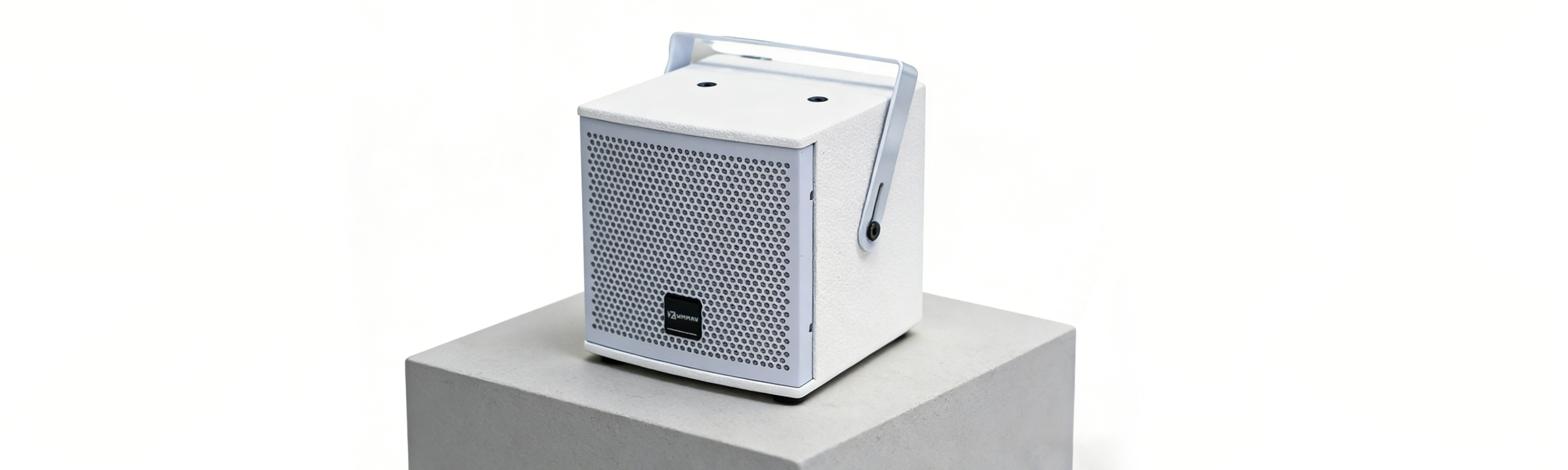

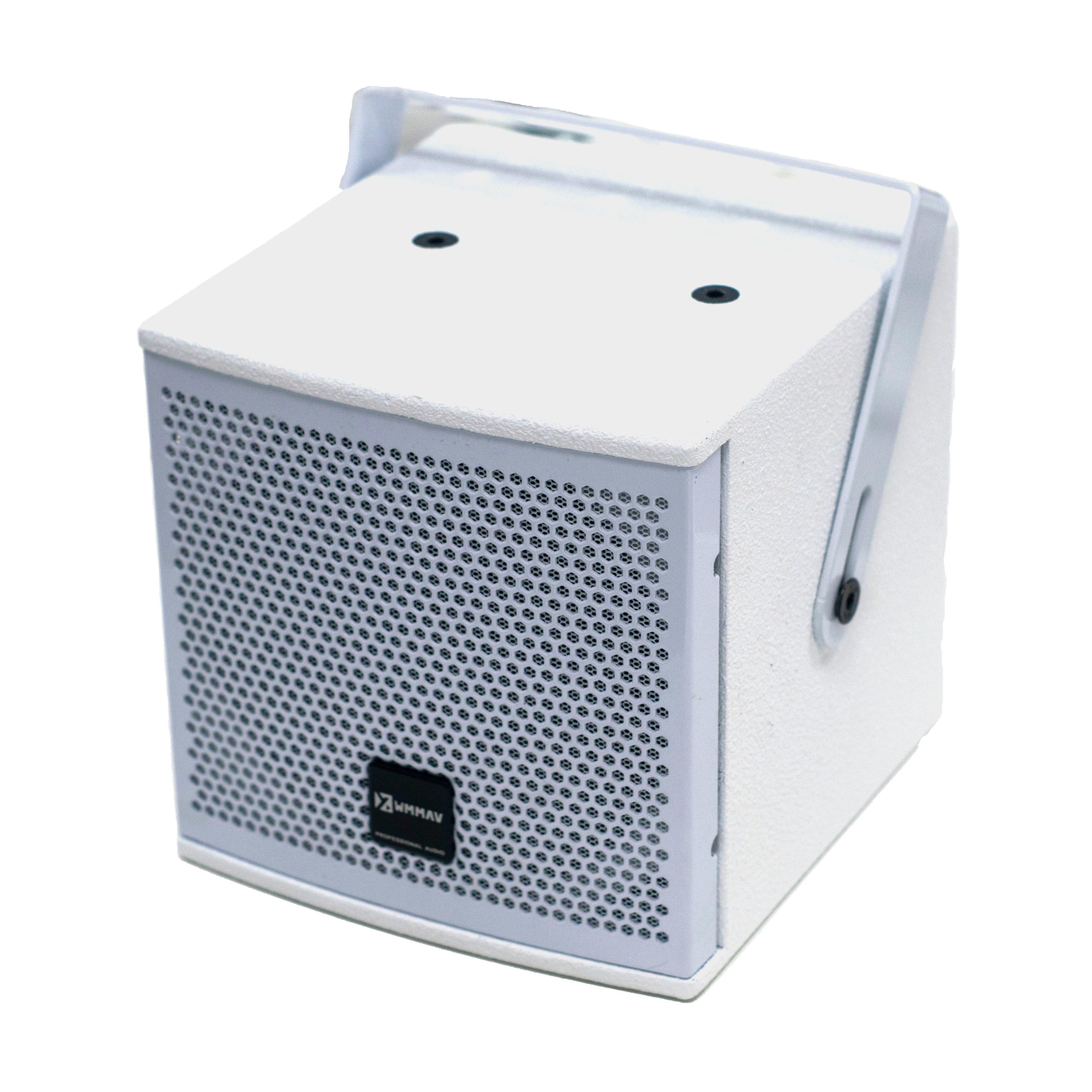

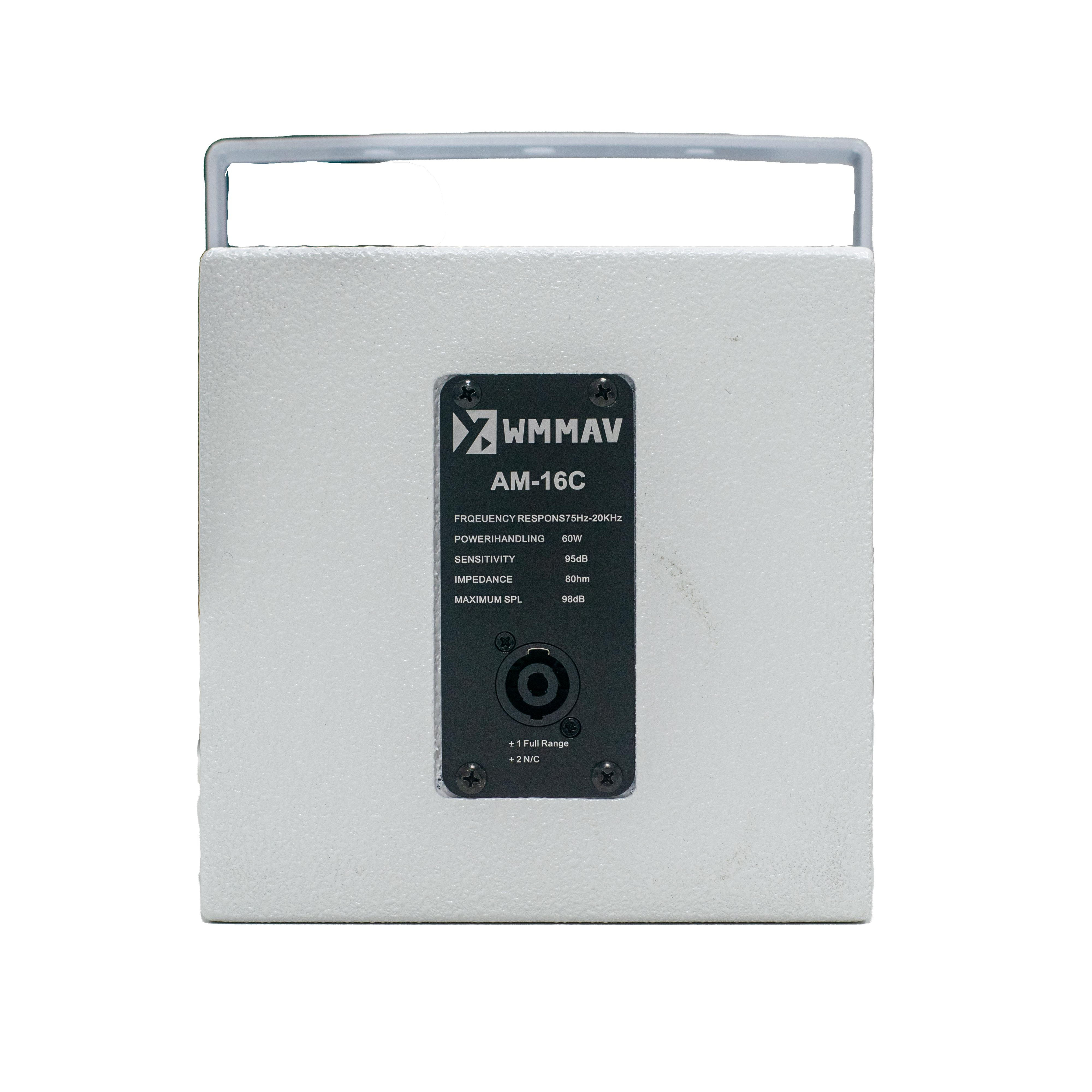

AM16C
1×6.5-inch Mini Coaxial Speaker
Product Overview
Suitable for Teaching Sound Reinforcement, Conference Systems and Background Music Applications
Product Features
Main features include
- Suitable for Teaching Sound Reinforcement, Conference Systems and Background Music Application Scenarios
- Adopts 6.5-inch 2-Way Loudspeaker System with Clear Sound and Uniform Coverage
- Adopts Neodymium Magnetic Coaxial Unit Design with Accurate High and Low Frequency Positioning
- High Sensitivity Design, Sufficient Sound Pressure Output Can Be Obtained at Low Power
- Supports Bracket and Stack Installation Methods, Flexible Deployment to Adapt to Various Installation Environments
Product Specifications
Technical parameter details:
| System Type | 1 × 6.5-inch 2-Way Loudspeaker |
| Frequency Response | 98 Hz – 21 kHz |
| Sensitivity (1W / 1m) | 98 dB |
| Nominal Impedance | 16 Ω |
| Rated Power (AES) | 90 W |
| Continuous Program Power | 150 W |
| Peak Power | 180 W |
| Unit Configuration | 1 × 6-inch Neodymium Magnetic Coaxial Unit (HF: 1 inch ×1) |
| Max SPL (Continuous / Peak) | 116 dB / 122 dB |
| Nominal Coverage Angle (H × V) | 110° × 110° |
| Cabinet Dimensions (D×W×H) | 217 × 202 × 217 mm |
| Installation Method | Supports Bracket and Stack Installation |
| Weight | 4.5 kg |
Product Resources
Relevant resource documents:
No product resources available
