AM12C
1×2-inch Mini Speaker
Product Overview
Mainly Applied to Background Music and Small-Scale Sound Reinforcement Scenarios
Product Features
Main features include
- Suitable for Background Music and Small-Scale Sound Reinforcement Application Scenarios
- Recommended to Be Used with ED-4150, ED-4300 and ED-2300 Series Power Amplifiers
- Compact Structure Design, Easy to Install, Suitable for Various Indoor Environments
- Clear and Natural Sound Quality, Meeting Daily Sound Reinforcement and Background Music Needs

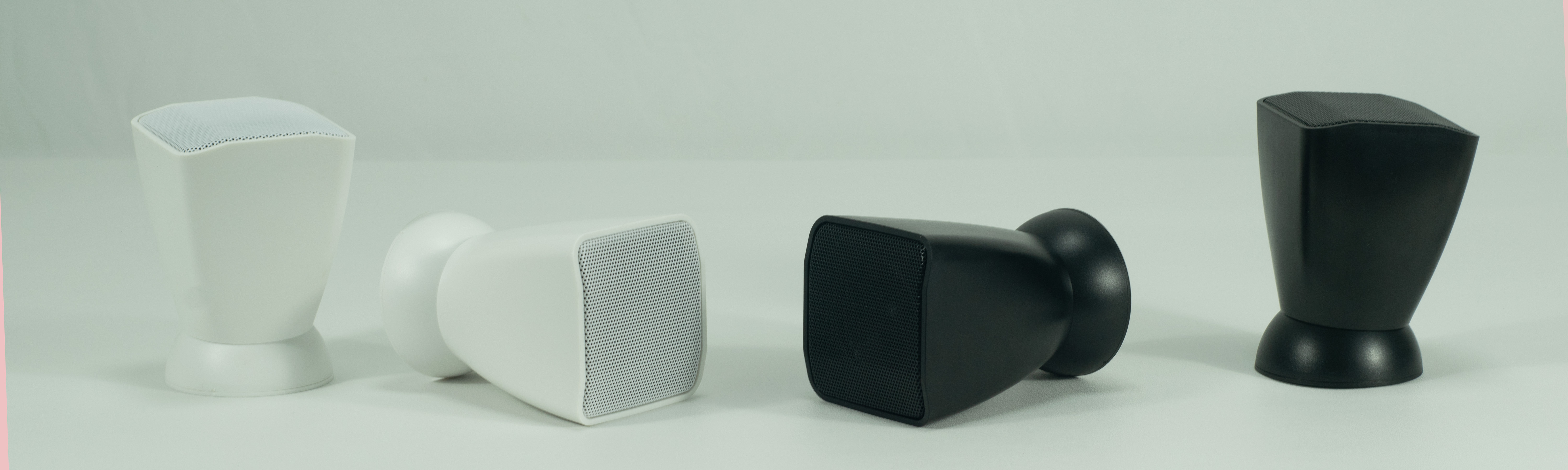

- Offers Two Exterior Color Options: White and Black
Product Specifications
Technical parameter details:
| Bass Loudspeaker | 2.5 Inches |
| Frequency Response | 180Hz – 20kHz |
| Sensitivity (1W / 1m) | 83.5 dB |
| Maximum Sound Pressure Level | 94 dB |
| Impedance | 8 Ω |
| Rated Power | 60 W |
| Color | White / Black |
| Dimensions (W×H×D) | 84 × 84 × 130 mm |
Product Resources
Relevant resource documents:
No product resources available
